SDM230-Modbus Single Phase

1,350 THB

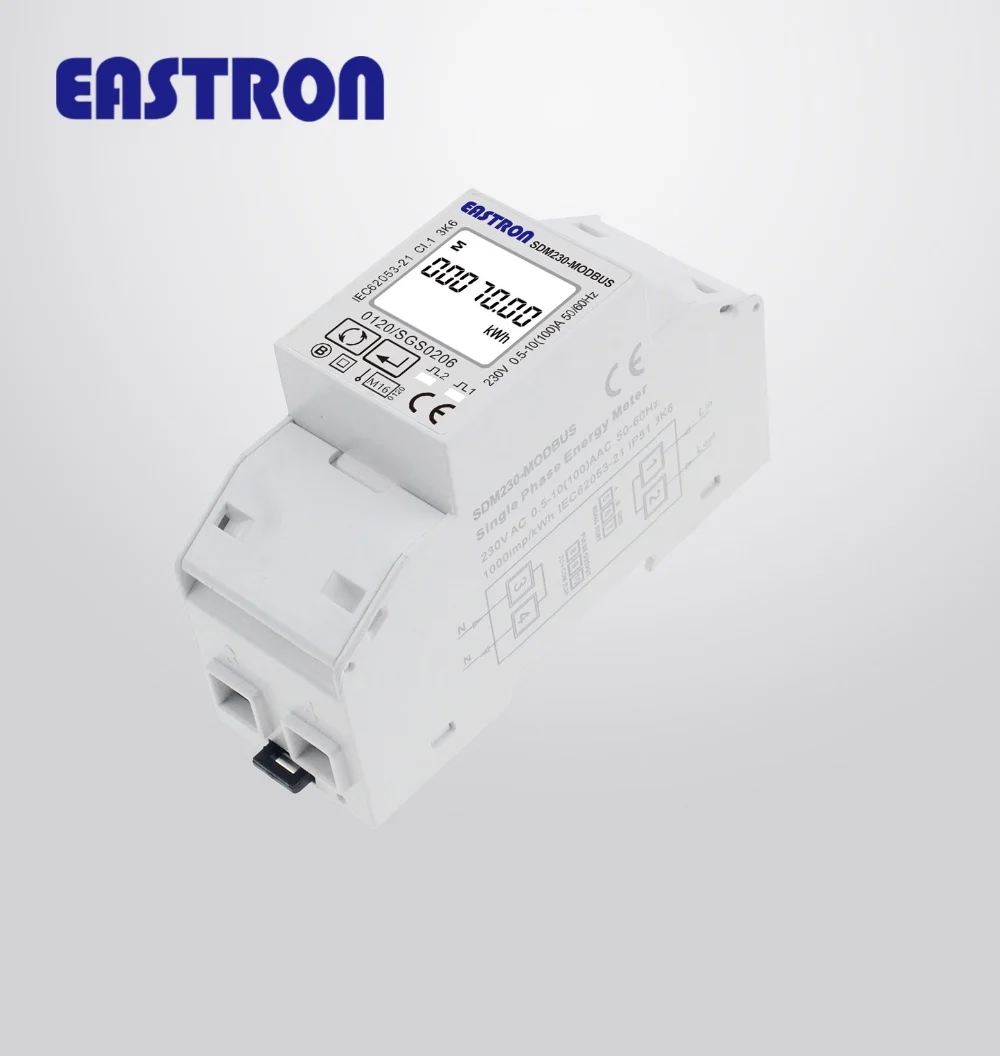

SDM230-Modbus Single Phase Bi-directional PV Energy Meter, Mono Fase Multifunction Meter, MID Meter


Product Description

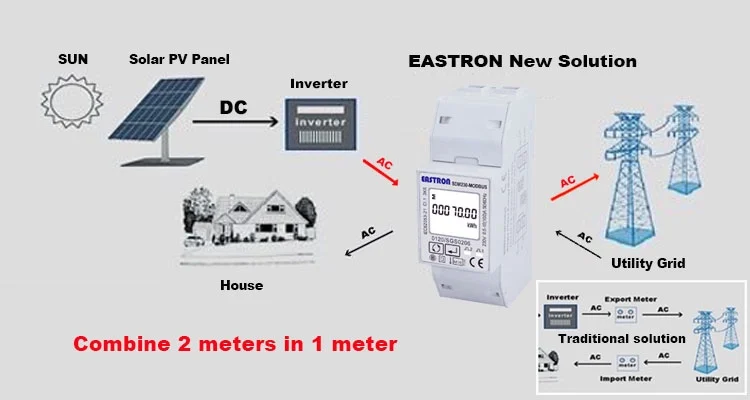

The SDM230-Modbus is an active for use in single-phase networks. This meter is designed for energy management on medium-power single-phase networks. It measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.  SDM230-Modbus supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected. It is ideal choice for partial measurement and Solar Panel PV Energy in installation such as Building/Office/Data/Centers/Shopping centers/Airports.

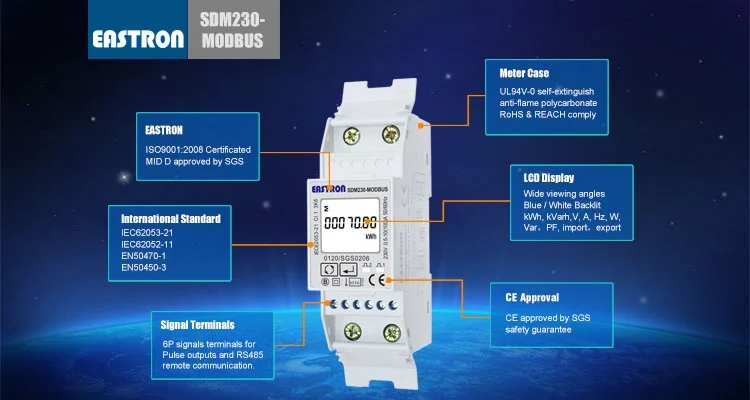

100A max direct connection
Full compliance with
IEC62053-21 standard
LCD display
Resettable energy as partial energy meter
2 Pulse output can be connected to a data logger

Class 1 as IEC62053-21

Active and reactive energy measurement

100A max direct connection
Display with backlit

Related Products

SDM230D Single Phase kWh Meter, Up to 100A, 5+1 LCD Digital Display with Backlit, Clear for Reading


SDM230-DR Single Phase kWh/ W measurement, Resettable kWh by Button


SDM230-Bi Single Phase Multifunction Energy Meter, Bi-driectional for IMP& EXP, Solar  PV Energy

Our Company

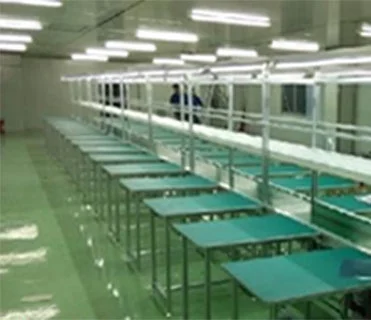

Eastron Electronic Instruments Co., Ltd is one of the leading high-tech companies of electrical measurement instruments. We always specialize in R&D, production and sales of smart meters and solutions. With advanced technologies of intelligent meter, we have developed lots of series products with excellent performance.
Qualityishighlyvalued,Eastronstrictlyfollow ISO9001:2008 inoperation,management. Eastron has obtained the MID(Measuring Instruments Directive) D from SGS for its production site. Eastron products had passed the European MID B,CE, ROHS 2.0 authentication and complied with relevant IEC , EN, G/B standard. With high quality products and reliable services, Eastron has gained a good reputation among clients and partners in more than 40 countries.
As one of the most reliable suppliers of meters in China for high quality, competitive price and excellent after-sales services, Eastron provides not only the existing products and services, we can also design and provide the products and services requested by customer. We are so proud of being favored by customers for our meters and solutions, especially for din rail energy meters, Panel meters, Current transformers, AMI/AMR systems, Prepayment Systems etc.
To meet the challenges of ever changing industry development, product design and manufacturing processes are constantly being improved, which makes Eastron keep its competitive edge in the market.
“Create Value to and Grow Up with Our Partners” is our working philosophy. We warmly welcome YOU contacting with us.
